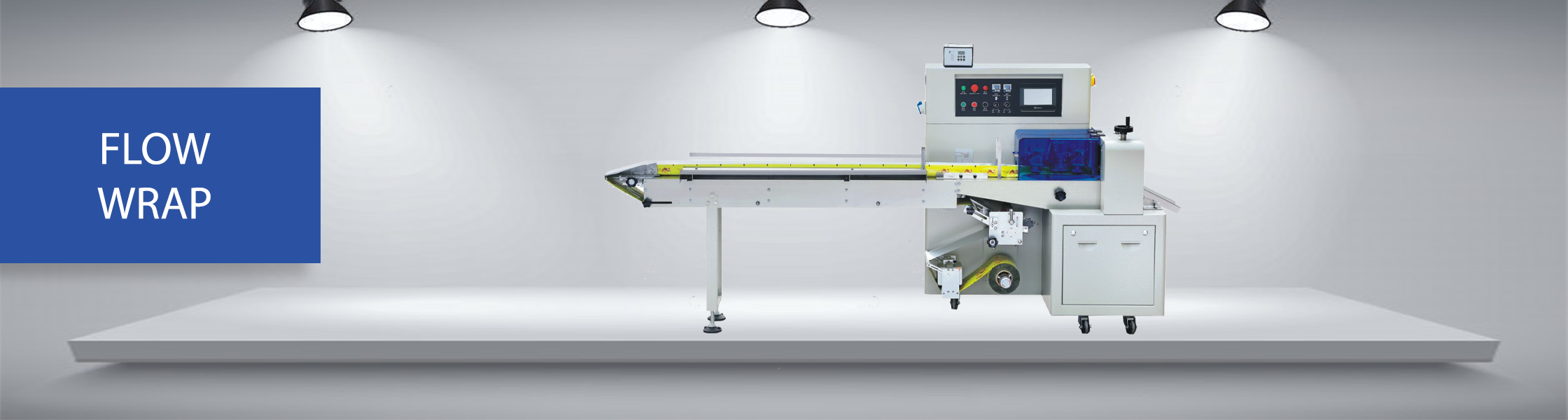

Flow Wrap Packaging Machine
Packaging Video
Horizontal flow wrap machines are highly efficient packaging machines that seal products horizontally with clear or printed PET, PE or BOPP-based film, making them ideal for packing large quantities of individual products.
Our flow wrap machines are suitable for applications and can be customised according to your production needs. According to your production requirements, all individual modules that comprise our flow wrap machine are available in different versions.
UK Packaging Machinery specializes in flow wrapper, candy wrapping machine options, and more for your production purchases. Please reach out to us to see how our machines can serve you.
Flow Wrapping machines are purpose-built machines that can utilise additional punnets and trays for the flow wrapping of goods in a wide range of industries. Products like fresh produce, pastries and bakery goods, and confectionary, as well as consumer goods like scratch cards, stationery and magazines, and household goods like napkins and disposable cutlery can be flow-wrapped to protect against damage. Additional gas flushing can be applied to replace oxygen with nitrogen inside the packaging to preserve goods’ shelf life.
- Superior packing quality to reduce movement and prevent damage during transport
- High packaging speeds of 65-70 packs, or up to 400 pieces per minute, depending on size
- Optimal preservation is possible with added nitrogen gas flushing to extent shelf life
- Automatic two-way colour-coded film tracking, positioning and placement systems for ideal bagging lengths and reduced material waste
- Simplified operation with bilingual, touch screen PLC control and automatic fault detection system
- Specialised rotary sealer with frequency conversion and temperature independent PID control for optimal sealing
- Minimal carbon footprint and reduced noise due to the use of a servo motor
- Modern, easy to clean stainless steel design that can withstand humid, corrosive environments
Flow Wrap machines seal products inside a neat pillow-shaped film or foil package to improve shelf life and guard against contamination. Typically, an infeed conveyor belt transports goods into a forming box that forms a continuous film tube around products. Next, a rotary heat sealer and cutter will separate and crimp seal goods to form individually packaged products that are primarily rectangular or square-shaped with a horizontal back seal, and top and bottom vertical seals.
Packaging Application
